KSD/KSS系列

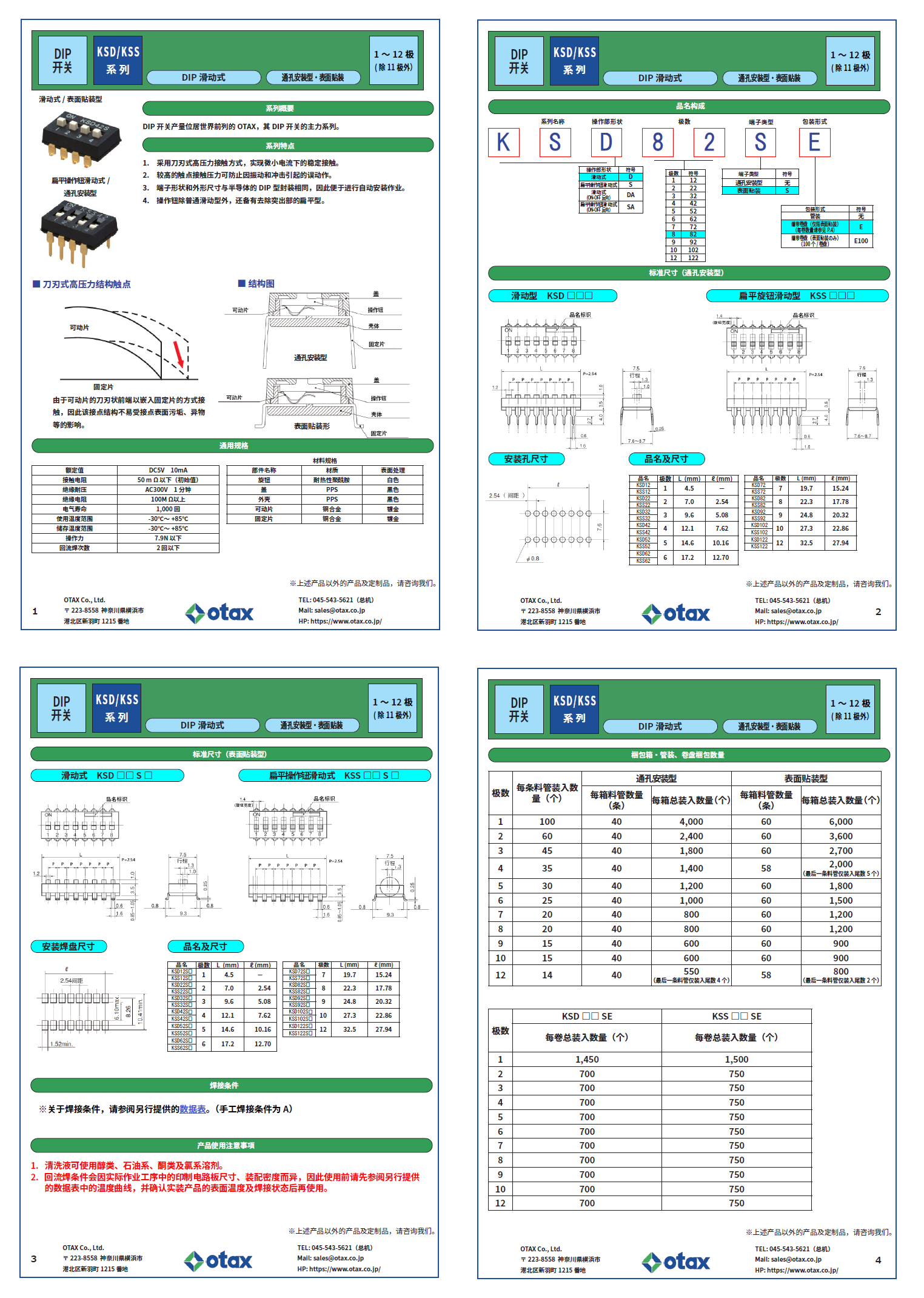

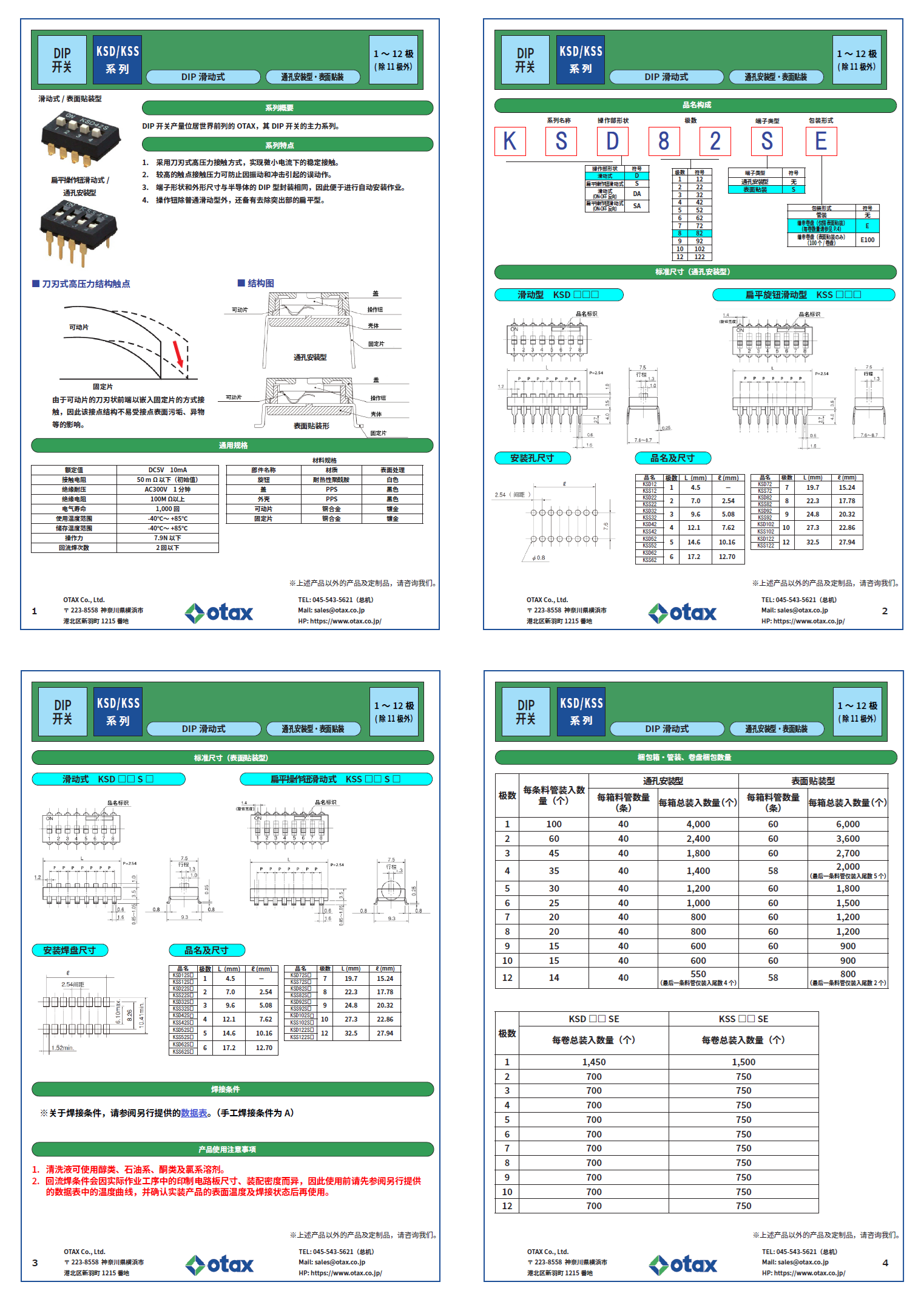

点击此处下载PDF

3D CAD Download

Series		Product Name				3D CAD	Remarks
	KSD	KSD12					Full-pitch　Slide　1 Pole　 Through-hole Insert
		KSD22					Full-pitch　Slide　2 Poles　Through-hole Insert
		KSD32					Full-pitch　Slide　3 Poles　Through-hole Insert
		KSD42					Full-pitch　Slide　4 Poles　Through-hole Insert
		KSD52					Full-pitch　Slide　5 Poles　Through-hole Insert
		KSD62					Full-pitch　Slide　6 Poles　Through-hole Insert
		KSD72					Full-pitch　Slide　7 Poles　Through-hole Insert
		KSD82					Full-pitch　Slide　8 Poles　Through-hole Insert
		KSD92					Full-pitch　Slide　9 Poles　Through-hole Insert
		KSD102					Full-pitch　Slide　10 Poles　Through-hole Insert
		KSD122					Full-pitch　Slide　12 Poles　Through-hole Insert
		KSD12S					Full-pitch　Slide　1 Pole 　SMD
		KSD22S					Full-pitch　Slide　2 Poles　SMD
		KSD32S					Full-pitch　Slide　3 Poles　SMD
		KSD42S					Full-pitch　Slide　4 Poles　SMD
		KSD52S					Full-pitch　Slide　5 Poles　SMD
		KSD62S					Full-pitch　Slide　6 Poles　SMD
		KSD72S					Full-pitch　Slide　7 Poles　SMD
		KSD82S					Full-pitch　Slide　8 Poles　SMD
		KSD92S					Full-pitch　Slide　9 Poles　SMD
		KSD102S					Full-pitch　Slide　10 Poles　SMD
		KSD122S					Full-pitch　Slide　12 Poles　SMD
	KSS	KSS12					Full-pitch Flat-knob Slide 1 Pole 　Through-hole Insert
		KSS22					Full-pitch Flat-knob Slide 2 Poles　Through-hole Insert
		KSS32					Full-pitch Flat-knob Slide 3 Poles　Through-hole Insert
		KSS42					Full-pitch Flat-knob Slide 4 Poles　Through-hole Insert
		KSS52					Full-pitch Flat-knob Slide 5 Poles　Through-hole Insert
		KSS62					Full-pitch Flat-knob Slide 6 Poles　Through-hole Insert
		KSS72					Full-pitch Flat-knob Slide 7 Poles　Through-hole Insert
		KSS82					Full-pitch Flat-knob Slide 8 Poles　Through-hole Insert
		KSS92					Full-pitch Flat-knob Slide 9 Poles　Through-hole Insert
		KSS102					Full-pitch Flat-knob Slide 10 Poles　Through-hole Insert
		KSS122					Full-pitch Flat-knob Slide 12 Poles　Through-hole Insert
		KSS12S					Full-pitch Flat-knob Slide 1 Pole 　SMD
		KSS22S					Full-pitch Flat-knob Slide 2 Poles　SMD
		KSS32S					Full-pitch Flat-knob Slide 3 Poles　SMD
		KSS42S					Full-pitch Flat-knob Slide 4 Poles　SMD
		KSS52S					Full-pitch Flat-knob Slide 5 Poles　SMD
		KSS62S					Full-pitch Flat-knob Slide 6 Poles　SMD
		KSS72S					Full-pitch Flat-knob Slide 7 Poles　SMD
		KSS82S					Full-pitch Flat-knob Slide 8 Poles　SMD
		KSS92S					Full-pitch Flat-knob Slide 9 Poles　SMD
		KSS102S					Full-pitch Flat-knob Slide 10 Poles　SMD
		KSS122S					Full-pitch Flat-knob Slide 12 Poles　SMD

■ DIP开关小知识

什么是DIP开关？

DIP开关是 Dual In-line Package Switch 的简称。由于用于半导体等的 Dual In-line Package 与滑动型 DIP 开关具有相同的外形，因此得名。它虽属于操作用开关的一种，但与其他开关不同，极少安装在面板表面，而是安装在印刷电路板上并嵌入内部装置中使用。其主要用途是控制数字信号，常用于程序设定、电路切换及电路检查等。

日本国内每月有1000万个的需求

DIP开关最早于1970年代在美国发明。在日本，它作为自动售货机费用设定用开关登场，截至2024年已有40多年的历史。作为编程设定开关，其用途得到了飞跃性扩展，目前据称在日本国内每月有1000万个的需求。

滑动型占比接近70％

DIP开关按操作部的形状大致可分为滑动型、钢琴型、旋转型，并根据用途加以区分使用。其中滑动型最为常见，约占整体的七成，主要使用4位和8位产品。旋转型在旋转拨盘时，按二进制换算，将OFF记为0、ON记为1，输出会依次变为000→001→010→011→…→111。
